- Multiple function: Quadruplex
- OS: Embedded Linux
- Video Input: 4ch

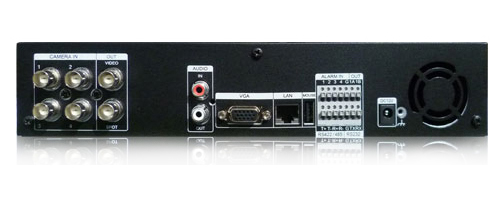

- Video Output: 1 VGA, 1 Composite, 1 Spot
- Audio Input/Output: 1 out (RCA)
- Alarm input/Output: 1 out (RCA)

- Compression:H.264
- Data Size:0.06~0.86 Mbps/ch @30fps(CIF,Low~D1,Ultra)
- Live Display Resolution:720*480(NTSC)/720*576(PAL)
- Live Display Speed:Real Time
- Display split mode: 1, 4, 8, 16
- Recording Speed: 30fps - 720x480 | 60fps - 720x240 | 120fps - 360x240
- Recording Mode: Continuous, Schedule, Motion, Alarm
- Recording Quality:Low, Middle, High, Super, Ultra
- Motion Detection:4*4(SET), 28*24 Grids(CMS), 20 Sensitivity Levels

- Search Method: Date & Time, Camera, Log search
- Playback of Backup file: Mini Player(Auto Copy), CMS
- Playback Speed: Multi Level

- Backup Storage interface: 1 x USB 2.0
- External Backup Device: External HDD, Flash Memory Stick
- Internal HDD: 1 x HDD
- DATA Archiving: Ethernet, Remote PC, External Recording device

- Network Interface: RJ 45/Ethernet
- Network Line: LAN, WAN, Internet
- Network Transmission Speed: Max.120fps
- Alarm Notification: E-mail:Alarm, Video Loss, Power Loss, HDD failure
- Pre-Alarm/Post-Alarm: 3 sec/10 sec~300 sec
- DDNS Support: Unique, Public Method

- Controls: Mouse, IR remote, Front touch Key, CMS, IE
- Firmware Upgrade: USB Memory stick
- Dimension: 280(W) x 315(D) x 55(H)mm
- Weight: 1.91KG without HDD(4.2 lbs)
- Power Consumption: 19.2W(HDD 250GB 1EA)
- Operating Temperature: 0°C~40°C
