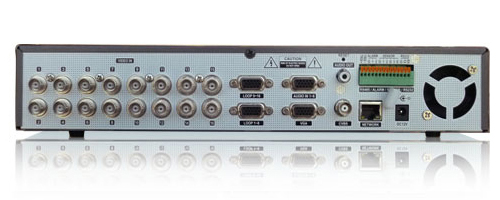

- Video In: 16 BNC (Loop-out Option)
- Video Out: 1VGA, 1CVBS (Dual Display)
- Audio In: 8 RCA (Line-In))
- Audio Out: 1 RCA (Line-Out)

- Sensor In: 4 TTL (3+Emergency)
- Alarm Out: 2 TTL
- I/O Interface: RS-232, RS-485, USB x 2
- Speed: Real Time
- Resolution: 720 x 480 (NTSC), 720 x 576 (PAL)
- Split Screen: 1, 4, 6, 8, 9, 13, 16, PIP, Digital Zoom

- Compression: H.264
- Speed / Resolution:
480fps @ CIF (NTSC) / 400fps @ CIF (PAL)
240fps @ Half D1 (NTSC) / 200fps @ Half D1 (PAL)
120fps @ D1 (NTSC) / 100fps @ D1 (PAL)
- Picture Quality: Very High, High, Standard, Low
- Mode: Time-Lapse, Event, Time & Event, Emergency (Panic)

- Display: 1, 4, 6, 8, 9, 13, 16, PIP, Digital Zoom
- Search Mode: Calandar Search, Event Search, Text In Search, Go to Time
- Playback Mode: Multi Channel Normal & Reverse Play, RW & FF ( X2, X4, X8, X16, X32 ), Frame to Frame, Pause
- Network Interface: HTTP, DHCP, ADSL(PPPoE), RTP/RTSP
- Protocol: Live, Playback, Setup, Notification (Callback, E-Mail)
- Application: Multi Channel Normal & Reverse Play, RW & FF ( X2, X4, X8, X16, X32 ), Frame to Frame, Pause
- Web Browse: Internet Explorer 7 or Higher
- Mobile Support: I Phone, Android Phone (Real Streaming)

- Control: Pront Panel Button, USB Mouse, IR Remote Controller, Joystick Controller
- ON Screen Display: Graphic User Interface (Multilingual)
- ODD: N/A
- Primary Storage: 2 x SATA HDD

- Power Consumption: DC12V, 3.33A (40W)
- Dimension: 340 X 67 X 265 (mm)
- Weight: 2Kg / 4.4lB (Without HDD)
- Certifications: FCC, CE, KCC
