- Image Sensor 1/3" Sony Super HAD II CCD
- Total Pixel: NTSC : 811(H) x 508(V), PAL : 795(H) x 596(V)
- Effective Pixel:NTSC : 768(H) x 494(V), PAL : 752(H) x 582(V)
- Scanning System: 2:1 Interlace
- Scanning Frequency: NTSC : 15.734kHz x 59.94Hz, PAL : 15.625kHz x 50Hz
- Synchronization: Internal
- Shutter Speed: NTSC : 1/60s~1/100,000s, PAL : 1/50s~1/100,000s
- Horizontal Resolution:600TVL(Color) / 620TVL(B/W)
- S/N Ratio: 50dB or more(AGC Off)
- Min. Illumination: Color : 0.1Lux, B/W : 0.01Lux, Sens up : 0.0001 Lux (F1.2 at 30 IRE)
- Video Output: VBS 1.0V p-p/75Ω

- Lens: [2.8~12mm] DC Auto Iris Lens (Option : IR Filter Change)
- Angular Field do View: H : 102°(Wide) ~ 28°(Tele), V : 73°(Wide) ~ 21°(Tele)
- Iris Control Auto / Manual

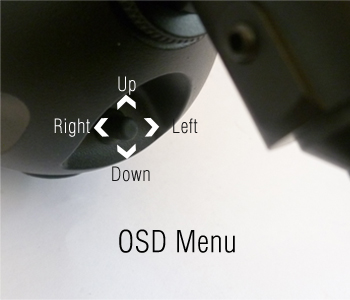

- On Screen Display: Support
- Day&Night: Color / BW / Auto Selectable
- Motion Detection: On / Off (4 Zone ISO Control/ Output OSD)
- Privacy Masking: On / Off (8 Areas)
- White Balance: ATW / MANUAL / AWC -> PUSH
- DNR:3D-DNR : OFF / AUTO/ LOW / MIDDLE / HIGH
- SMART WDR: On / Off (Level Adjustable)
- Sens-Up: OFF/ AUTO/ Fixed (Selectable X2~X1024)
- Auto Gain Control: OFF / LOW / MIDDLE / HIGH Selectable
- Sharpness: Level Adjustable
- Heater: Option

- Power:MAX. DC12V 320mA [4.2W] / With Heater : DC12V 580mA [7.0W]
- Power Supply: DC12V 500mA/DC12V 1.0A(With Heater)

- Dimension:124mm(W) x 80.8mm(H) x 83.5mm(D)
- Weight: 450g

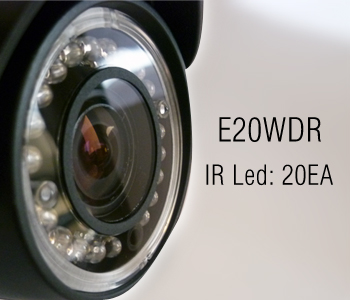

- IR LED: 20EA
- Ingress Protection: IP68
- Certifications:CE, FCC
- Outside Control: Zoom, Focus, OSD
